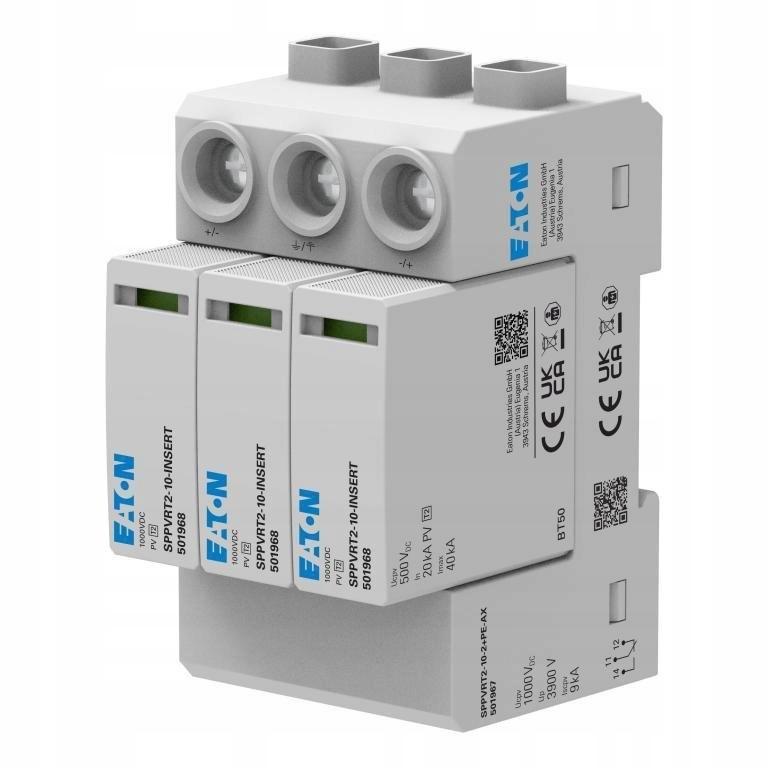

Ogranicznik przepięć do fotowoltaiki Typ 2 1000VDC SPPVRT2-10-2+PE, EP-501966 Eaton

Dane ogólne:

• Product name: Eaton xPole SPPVR surge protection device
• Part no.: SPPVRT2-10-2+PE
• EAN: 9010653062875
• Product Length/Depth: 104 millimetre
• Product height: 60 millimetre
• Product width: 54 millimetre
• Product weight: 0.28 kilogram
• Certifications: CE
• Product Tradename: xPole SPPVR
• Product Type: Surge protection device
• Product Sub Type: None

Dane techniczne zgodne z ETIM 9.0

• System configuration DC: Yes
• System configuration IT: No
• System configuration TN: No
• System configuration TN-C: No
• System configuration TN-C-S: No
• System configuration TN-S: No
• System configuration TT: No
• System configuration other: No
• Number of conductors (without earthing): 2
• Nominal discharge surge current (8/20): 20 kA
• Max. discharge surge current (8/20): 40 kA
• Nominal voltage AC: V
• Nominal voltage DC: 1000 V
• Max. continuous voltage AC: V
• Max. continuous voltage DC: 1000 V
• Max. PV-voltage: 1000 V
• Voltage protection level: 3.9 kV
• Voltage protection level L-N: kV
• Voltage protection level N-PE: kV
• Max. overcurrent protection device, parallel connection (fuse): A
• Max. overcurrent protection device, series connection (fuse): A
• Short-circuit breaking capacity (Isccr): 9 kA
• Integrated short-circuit protection: No
• Integrated short-circuit protection selective to fuse gG: A
• Integrated backup fuse: No
• Leakage-current free: No
• Mounting method: DIN rail (top hat rail) 35 mm
• Construction size: 3 modular spacing
• Max. conductor cross section solid (solid, stranded): 35 mm²
• Max. conductor cross section flexible (fine-strand): 25 mm²
• Signalling at the device: Optical
• Category type 2: Yes
• Degree of protection (IP): IP20
